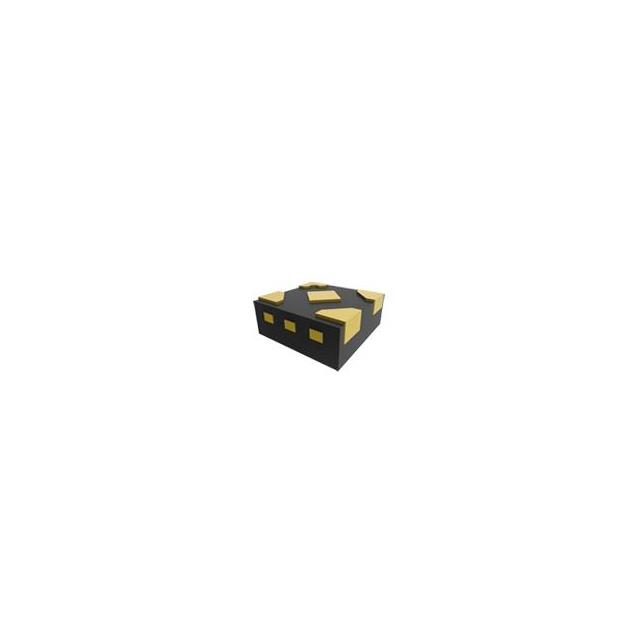

TVS DIODE 5VWM 12VC DFN0808-4 | Micro Commercial Co
12V Clamp 3.5A (8/20μs) Ipp Tvs Diode Surface Mount DFN0808-4
Images may differ
Unit Price ($ / pc.)
$
*
Available: 171 pcs.
Next delivery: 2541 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The ESD0514PD-TP is a common industry TVS Diodes housed in a RoHS compliant 4-XFDFN Exposed Pad package by Micro Commercial Co made. The ESD0514PD-TP is using SPQ 5000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Micro Commercial Co |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Zener |
| Bidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000μs) | 3.5A (8/20μs) |
| Power - Peak Pulse | 40W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 5pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFDFN Exposed Pad |
| Supplier Device Package | DFN0808-4 |
| Base Product Number | ESD0514 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 5000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
