MEMS OSCILLATOR SMD | Microchip Technology
80 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.63V Enable/Disable 6-VDFN

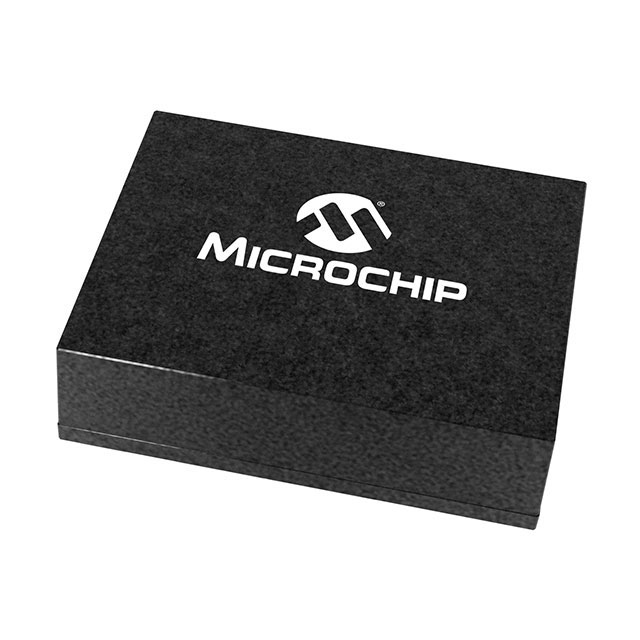

Images may differ
Unit Price ($ / pc.)
$
*
Available: 181 pcs.
Next delivery: 2751 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The DSC1223DI1-80M00000 is a common industry Oscillators housed in a RoHS compliant 6-VDFN package by Microchip Technology made. The DSC1223DI1-80M00000 is using SPQ 140 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Microchip Technology |
| Series | DSC12X3 |
| Package | Tube |
| Product Status | Active |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 80 MHz |
| Function | Enable/Disable |
| Output | LVDS |
| Voltage - Supply | 2.25V ~ 3.63V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 32mA (Typ) |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN |
| Size / Dimension | 0.098 L x 0.079 W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.035 (0.90mm) |
| Current - Supply (Disable) (Max) | 23mA (Typ) |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 140 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
