RECTIFIER DIODE, SCHOTTKY | NXP USA Inc.

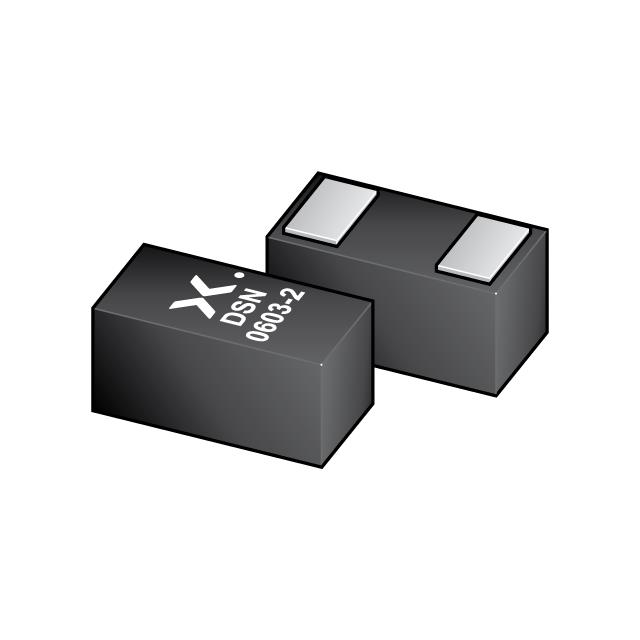

Diode 30 V 500mA Surface Mount DSN0603-2
Images may differ
Unit Price ($ / pc.)
$
*
Available: 171 pcs.
Next delivery: 2541 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The PMEG3005AESFC315 is a common industry Single Diodes housed in a RoHS compliant 0201 (0603 Metric) package by NXP USA Inc. made. The PMEG3005AESFC315 is using SPQ 6662 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | NXP USA Inc. |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 630 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.37 ns |
| Current - Reverse Leakage @ Vr | 80 μA @ 30 V |
| Capacitance @ Vr, F | 22pF @ 1V, 1MHz |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | DSN0603-2 |
| Operating Temperature - Junction | 150°C |
| Base Product Number | PMEG3005 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 6662 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
