MOSFET 2N-CH 30V 20A WISON-8 | Infineon Technologies
Mosfet Array 30V 20A (Tc) 17W Surface Mount PG-WISON-8

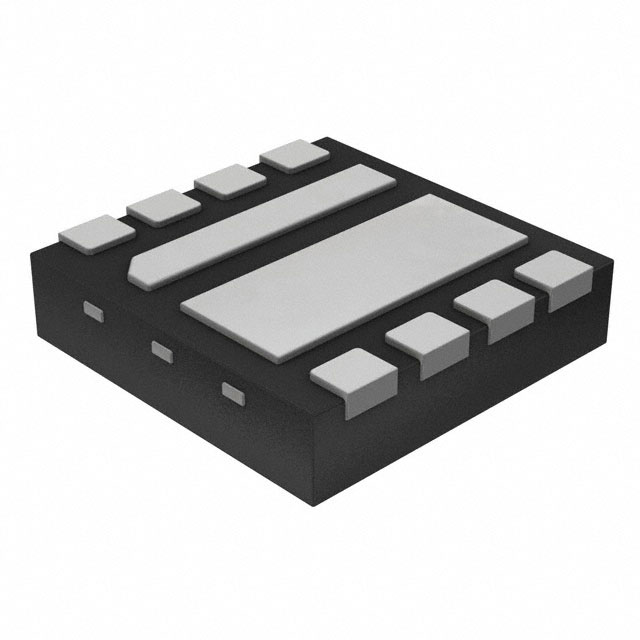

Images may differ
Unit Price ($ / pc.)
$
*
Available: 716 pcs.
Next delivery: 13986 pcs.
Available in 6 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The BSZ0909NDXTMA1 is a common industry FET, MOSFET Arrays housed in a RoHS compliant 8-PowerVDFN package by Infineon Technologies made. The BSZ0909NDXTMA1 is using SPQ 5000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Infineon Technologies |
| Series | OptiMOS |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate, 4.5V Drive |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250μA |
| Gate Charge (Qg) (Max) @ Vgs | 2.6nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 360pF @ 15V |
| Power - Max | 17W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Supplier Device Package | PG-WISON-8 |
| Base Product Number | BSZ0909 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 5000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
