10P,2MM,BRK HDR,SRRT,2.8,0.1AU,T | TE Connectivity AMP Connectors

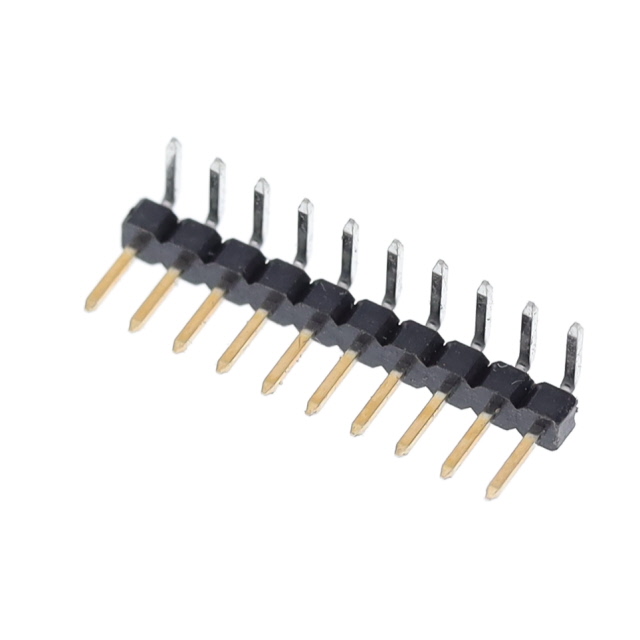

Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)
Images may differ
Unit Price ($ / pc.)
0.376515 $
*
Available: 165 pcs.
Next delivery: 2415 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 17 Weeks **
Quantity
Price per unit*
100 pcs.
0.357689 $
500 pcs.
0.338864 $
1000 pcs.
0.320038 $
3000 pcs.
0.301212 $
10000 pcs.
0.282386 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 1-2842110-0 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by TE Connectivity AMP Connectors made. The 1-2842110-0 is using SPQ 29 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | TE Connectivity AMP Connectors |
| Series | AMPMODU |
| Package | Tube |
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | - |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.94μin (0.100μm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | 125VAC/DC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 78.7μin (2.00μm) |
| Applications | - |
| Base Product Number | 2842110 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 29 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
