ULTRAFIT HDR RT 2R NAT 16POS 30A | Molex
Connector Header Through Hole, Right Angle 16 position 0.138" (3.50mm)

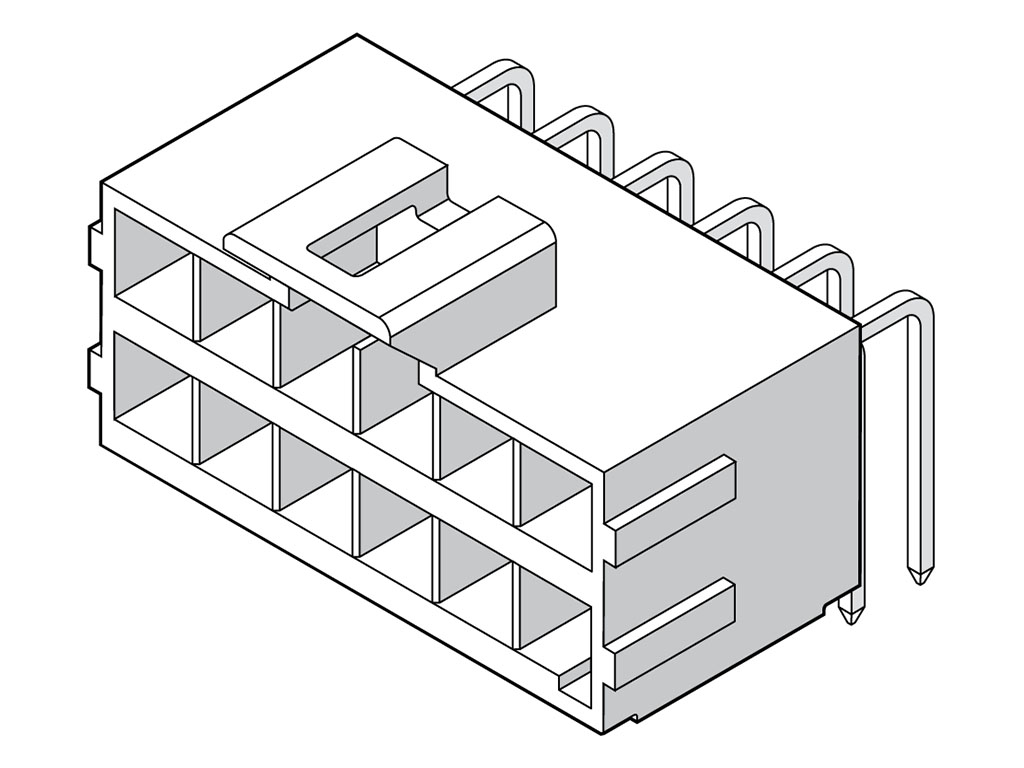

Images may differ
Unit Price ($ / pc.)
4.12991 $
*
Available: 196 pcs.
Next delivery: 3066 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 31 Weeks **
Quantity
Price per unit*
100 pcs.
3.923415 $
500 pcs.
3.716919 $
1000 pcs.
3.510424 $
3000 pcs.
3.303928 $
10000 pcs.
3.097433 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 1723164316 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Molex made. The 1723164316 is using SPQ 400 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | Ultra-Fit 172316 |
| Package | Bulk |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.138" (3.50mm) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.181" (4.60mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.534" (13.56mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0μin (0.76μm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 600VAC/DC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 60.0μin (1.52μm) |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
| Base Product Number | 172316 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 400 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
