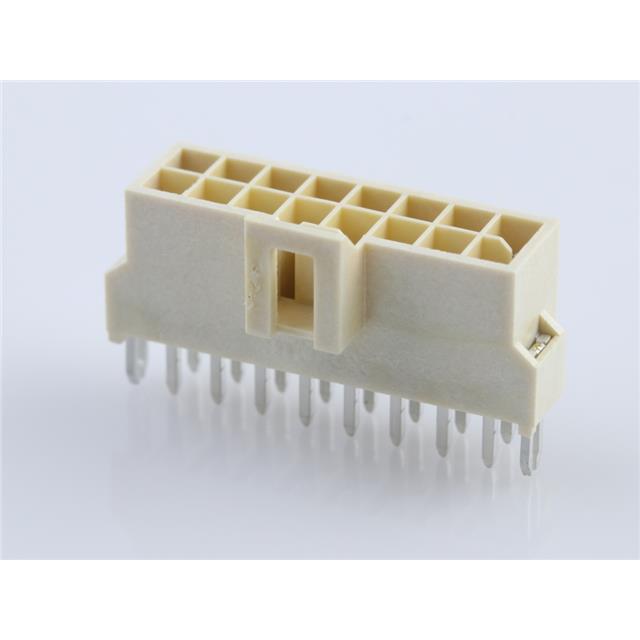

NANOFIT HDR VT DLR FRK 16CKT 15A | Molex
Connector Header Through Hole 16 position 0.098 (2.50mm)
Images may differ
Unit Price ($ / pc.)
1.195 $
*
Available: 196 pcs.
Next delivery: 3066 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
1.13525 $
500 pcs.
1.0755 $
1000 pcs.
1.01575 $
3000 pcs.
0.956 $
10000 pcs.
0.89625 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 1053122216 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Molex made. The 1053122216 is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | Nano-Fit 105312 |
| Package | Box |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.098" (2.50mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.356" (9.05mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0μin (0.38μm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Lock |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | 250V |
| Mated Stacking Heights | 21.30mm |
| Contact Finish Thickness - Post | 59.0μin (1.50μm) |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
