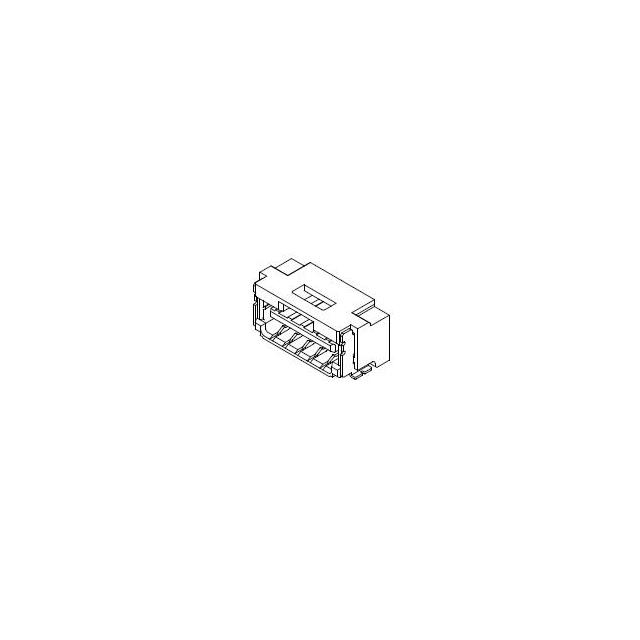

1.25 WTB R/A CONN. 5P HEADER ASS | Molex
Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm)
Images may differ
Unit Price ($ / pc.)
0.405 $
*
Available: 197 pcs.
Next delivery: 3087 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0.38475 $
500 pcs.
0.3645 $
1000 pcs.
0.34425 $
3000 pcs.
0.324 $
10000 pcs.
0.30375 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 1040910520 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Molex made. The 1040910520 is using SPQ 1500 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | IllumiMate 104091 |
| Package | Box |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Non-Gendered |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.159" (4.05mm) |
| Contact Shape | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1μin (3.00μm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free |
| Features | Solder Retention |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 118.1μin (3.00μm) |
| Applications | General Purpose, Medical |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1500 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
