CONN HEADER R/A 10POS 2MM | Molex

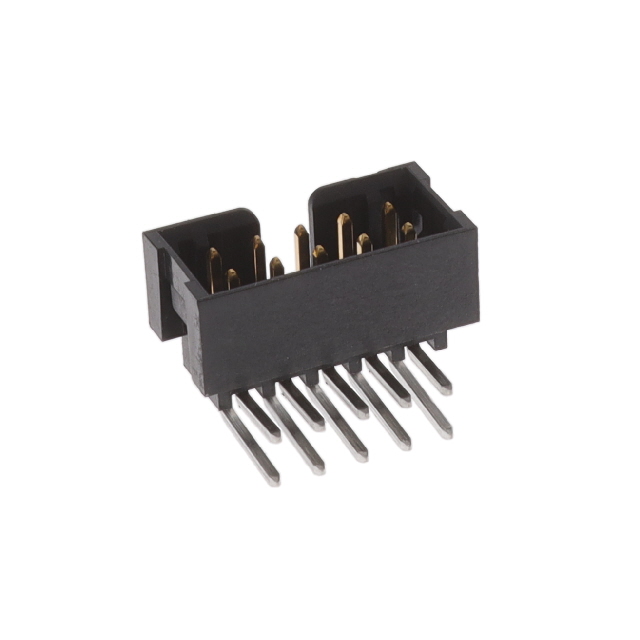

Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)
Images may differ
Unit Price ($ / pc.)
0.316415 $
*
Available: 328 pcs.
Next delivery: 5838 pcs.
Available in 2 Weeks
Manufacturer Leadtime: 19 Weeks **
Quantity
Price per unit*
100 pcs.
0.300594 $
500 pcs.
0.284774 $
1000 pcs.
0.268953 $
3000 pcs.
0.253132 $
10000 pcs.
0.237311 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 780461020 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Molex made. The 780461020 is using SPQ 42 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | Milli-Grid 78046 |
| Package | Tube |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.141" (3.60mm) |
| Contact Length - Post | 0.085" (2.16mm) |
| Overall Contact Length | - |
| Insulation Height | 0.248" (6.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0μin (0.38μm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Features | Keying Slot |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 74.8μin (1.90μm) |
| Applications | Automotive, General Purpose, Telecommunications |
| Base Product Number | 078046 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 42 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
