5P,2MM,B-B,REC,SRHZ,2.8,0.1AU,TB | TE Connectivity AMP Connectors

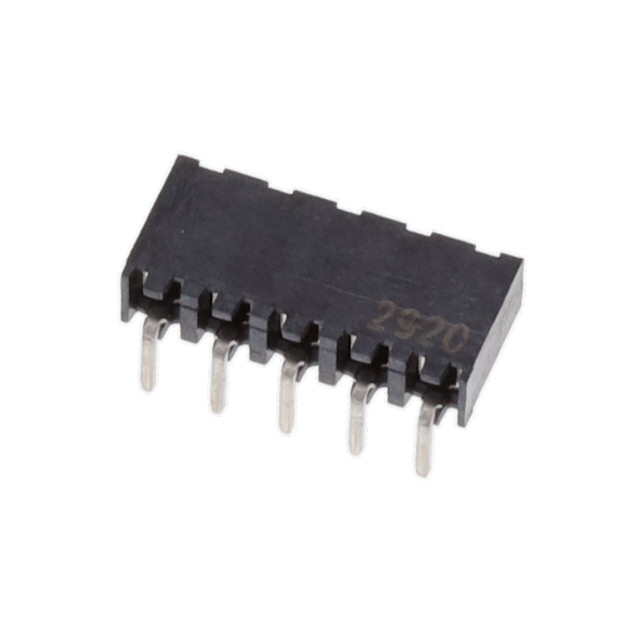

5 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
Images may differ
Unit Price ($ / pc.)
0.26153 $
*
Available: 165 pcs.
Next delivery: 2415 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 17 Weeks **
Quantity
Price per unit*
100 pcs.
0.248454 $
500 pcs.
0.235377 $
1000 pcs.
0.222301 $
3000 pcs.
0.209224 $
10000 pcs.
0.196148 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 2314936-5 is a common industry Headers, Receptacles, Female Sockets housed in a RoHS compliant Standar package by TE Connectivity AMP Connectors made. The 2314936-5 is using SPQ 500 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | TE Connectivity AMP Connectors |
| Series | AMPMODU |
| Package | Tape & Reel (TR)"},{"id":"2","value":"Cut Tape (CT) |
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 5 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.94μin (0.100μm) |
| Insulation Color | Black |
| Insulation Height | 0.080" (2.03mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 2A |
| Voltage Rating | 125V |
| Applications | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Post | 118.1μin (3.00μm) |
| Base Product Number | 2314936 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 500 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
