5.08 MM TERMINAL BLOCK HEADER, H | Würth Elektronik

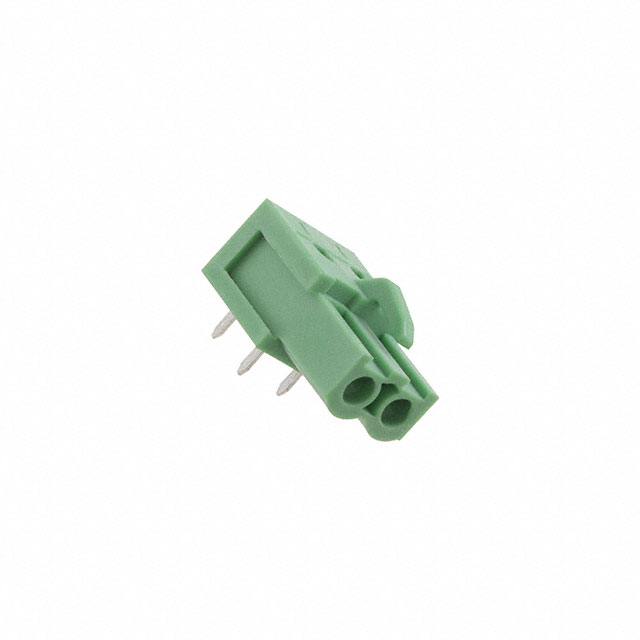

2 Position Terminal Block Header, Female Sockets 0.200" (5.08mm) 90°, Right Angle Through Hole
Images may differ
Unit Price ($ / pc.)
0.6045 $
*
Available: 164 pcs.
Next delivery: 2394 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 17 Weeks **
Quantity
Price per unit*
100 pcs.
0.574275 $
500 pcs.
0.54405 $
1000 pcs.
0.513825 $
3000 pcs.
0.4836 $
10000 pcs.
0.453375 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 6.9131E+11 is a common industry Headers, Plugs and Sockets housed in a RoHS compliant Standar package by Würth Elektronik made. The 6.9131E+11 is using SPQ 250 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Würth Elektronik |
| Series | WR-TBL Series 3095 |
| Package | Bulk |
| Product Status | Active |
| Type | Header, Female Sockets |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | - |
| Current - UL | 20 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm2 | - |
| Color | Green |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | Tin |
| Features | Retention Latches |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | Brass |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Tail Length | 0.138" (3.50mm) |
| Insulation Height | 0.339" (8.61mm) |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 250 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
