CONN RCPT MALE 4POS SOLDER CUP | Conxall/Switchcraft

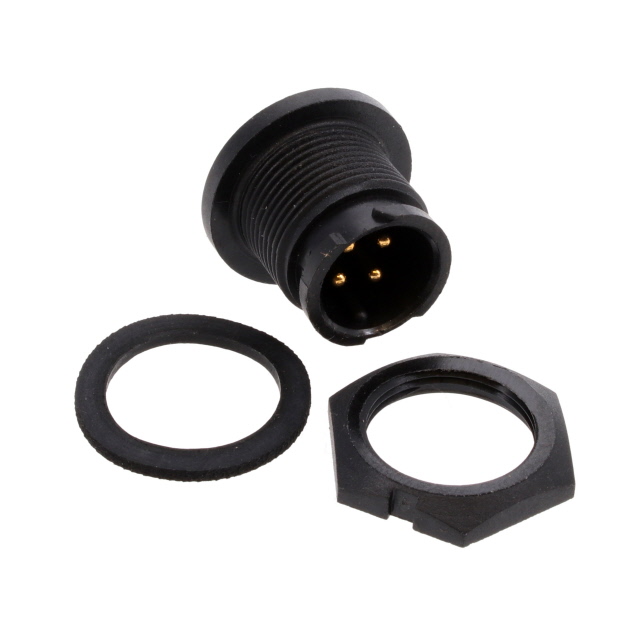

4 Position Circular Connector Receptacle, Male Pins Solder Cup
Images may differ
Unit Price ($ / pc.)
4.003035 $
*
Available: 164 pcs.
Next delivery: 2394 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 12 Weeks **
Quantity
Price per unit*
100 pcs.
3.802883 $
500 pcs.
3.602732 $
1000 pcs.
3.40258 $
3000 pcs.
3.202428 $
10000 pcs.
3.002276 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The W7382-4PG-P-300 is a common industry Circular Connector Assemblies housed in a RoHS compliant Standar package by Conxall/Switchcraft made. The W7382-4PG-P-300 is using SPQ 25 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Conxall/Switchcraft |
| Series | Mini-Con-X Insta-Click |
| Package | Bulk |
| Product Status | Active |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 4 |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Thermoplastic |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | - |
| Features | UV Resistant |
| Shielding | Unshielded |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 300VAC/DC |
| Cable Opening | - |
| Operating Temperature | -40°C ~ 85°C |
| Backshell Material, Plating | Thermoplastic |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - |
| Insert Material | Thermoplastic |
| Applications | Automotive, Communication Systems, Instrumentation |
| Base Product Number | W7382-4 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 25 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
