IC GATE XOR 1CH 2-INP 6MICROPAK | Fairchild Semiconductor
XOR (Exclusive OR) IC 1 Channel 6-MicroPak

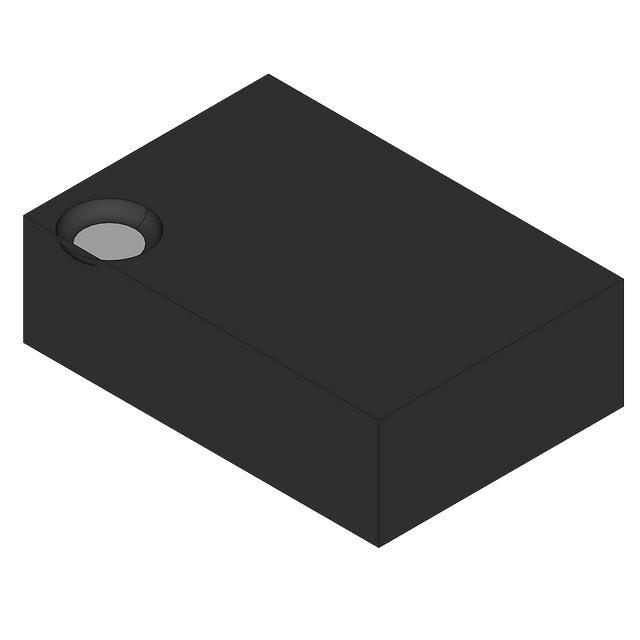

Images may differ
Unit Price ($ / pc.)
$
*
Available: 184 pcs.
Next delivery: 2814 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The NC7SV86L6X is a common industry Gates and Inverters housed in a RoHS compliant 6-UFDFN package by Fairchild Semiconductor made. The NC7SV86L6X is using SPQ 1118 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Fairchild Semiconductor |
| Series | 7SV |
| Package | Bulk |
| Product Status | Active |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 0.9V ~ 3.6V |
| Current - Quiescent (Max) | 900 nA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Input Logic Level - High | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL | 3.3ns @ 3V, 30pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-MicroPak |
| Package / Case | 6-UFDFN |
| Base Product Number | 7SV86 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1118 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
